Get rid of complicated Buttons! All of the functions are at your fingertips. Its touchscreen allows you to zoom your image freely with a pinch gesture and access the menu settings conveniently.
Custom 3D LUT Support
The LUT loading function makes the color calibration easier and more intuitive, helps you optimize the work-flow efficiently. You can upload 3D LUT cube to F6 Plus via SD card.
Ideal Camera Partner
Efficient DC output design. With a dummy battery(Optional), it can power your DSLR or mirrorless camera at any time, extend the run-time of your camera, while provide a more usable display.
Flexible Dual-purpose Battery Plate
Built-in two-in-one battery plate, compatible with Sony F Series and Canon LP-E6 batteries, providing long-time working condition. You don’t need to buy battery plates separately. (Note: There are no batteries included.)
Support 4K Format
4K UHD 3840x2160p (30/29.97/25/24/23.98Hz), 4096x2160p (24Hz). And the HDMI output can be transmitted to broadcast monitor then you can monitor them at the same time.
1× F6 PLUS monitor
1× Micro HDMI Cable
1× Sunshade
1× Tilt Arm
1× Manual(Noted: The battery is NOT included)
Accurate Waveform Monitoring
When you need to analyze image quality more accurately than simply looking at the picture then use F6 PLUS’s built in waveform monitoring! Choose from waveform (RGB Parade, Y Parade), vectorscope, histogram and audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. F6 PLUS is perfect for live production monitoring and removes the need for separate expensive scopes!
3D LUT Color Calibration and Real-time Preview
User LUT cube import
F6 PLUS provides S-log2/3, V-log, Log-C etc, to convert log mode to REC709 for all major cameras. The LUT loading function makes the color calibration work of the previous shooting easier and more intuitive, optimizes the workflow and improves work efficiency. User creative 3D LUT cube or calibration 3D LUT cube can be uploaded to F6 PLUS by SD card.
Easy Touchscreen Controls, Freely Zoom In and Out
OCR Full-fit Screen Design
The monitor uses OCR full-fit technology and high-strength, scratch-resistant, impact-resistant glass.
Use simple tap and swipe gestures to make adjustments!
The built-in monitor is also an interactive touchscreen that makes setting up the F6 PLUS incredibly intuitive. All of the functions are at your fingertips, allowing you to use simple tap and swipe gestures to change function settings. You can easily and intuitively zoom in and out of your shot with the pinch-to-zoom gesture.
Support Touch Screen and Button Control Menu
●You can also get a quick glance at your menu settings and features with an easy tap on the screen.
●It also supports physical buttons control. Tap/Rotate the wheel button for quick selection and function settings.
●Tap the power switch to turn off the touch function, designed to prevent misuse.
1920×1080 Display with Rec. 709 Color Calibration
The 5.5″ IPS screen features a 1920 x 1080 resolution, packing 400 pixels per inch and provides a wide viewing angle of 160° and for easier off-axis position monitoring. Built-in 3D LUT color calibration, which complies with the standard of REC-709, can calibrate each monitors so that it can eliminate the trouble of color cast.

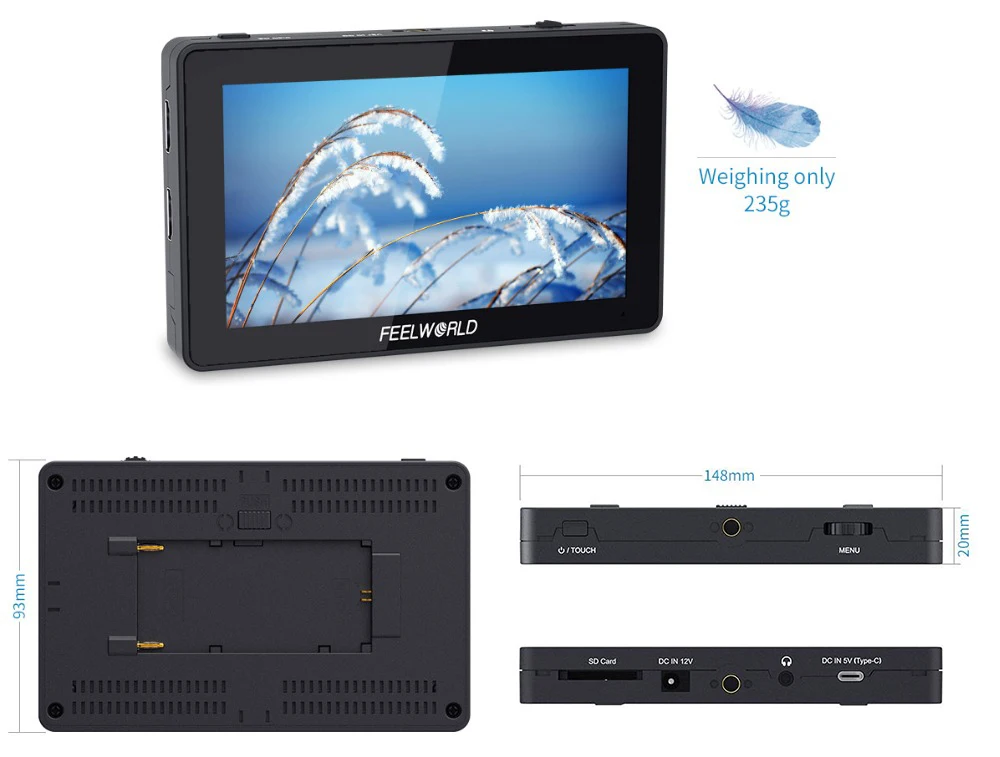

Light and Slim Design, Only 235g
The F6 PLUS is 5.5 inch and only 235g, and makes it the ideal size and weight for field production. The entire monitor’s build is sturdy and compact, allowing you to easily mount it to your DSLR camera or even a gimbal stabilizer. It gives you the freedom to shoot well anywhere.
Monitoring Tools with Quick Accessibility
The F6 PLUS keeps the original great: it’s small, lightweight and has great image quality. In addition, it now features the touch screen and has the ability to import 3D LUTs via the SD card. The F6 PLUS is the perfect monitor for those who need an easy-to-use lightweight on-camera monitor such as gimbal operators, or shooters that are always on the go.
Its touchscreen conveniently allows you to zoom your image with a pinch gesture and tap to access the menu settings. There are also a variety of onscreen tools to help you set up your shots, including histogram, peaking, embedded audio, exposure, false color, zoom, guides, pixel-to-pixel, anamorphic mode, image freeze and more.
User LUT Cube Import
F6 PLUS provides S-log2/3, V-log, Log-C etc, to convert log mode to REC709 for all major cameras. The LUT loading function makes the color calibration work of the previous shooting easier and more intuitive, optimizes the workflow and improves work efficiency. User creative 3D LUT cube or calibration 3D LUT cube can be uploaded to F6 PLUS by SD card.
Zoom In (100%~300%)
Image magnification is HD signal in any part, an amplification for high quality close-up. The touch panel can help you zoom in quickly, zoom out and move the image after zooming in.
Video Analysis Assistant Pattern
Waveform / Vector scope / Histogram
Waveform
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.
Vectorscope
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
All Scopes Mode
This mode shrinks your video image to approximately the size of a 5.5″ display and tiles your choice of waveform, vectorscope, histogram, and embedded audio on the border of your video.
Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the peaking color between yellow, red, green, blue, white according to different tone of the subject. The focus level can be adjusted from 1 to 10 levels.
4K HDMI Input & Loop Output
The F6 PLUS has 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It’s the ability to display live picture on multiple displays at once while still maintaining the original video quality. Plus, you can monitor audio using the 3.5mm stereo headphone jack.
HDMI Output Application
Connect to Wireless Transmitter,Director Monitor, Projector, etc.
Power Your DSLR or Mirrorless Camera
The FEELWORLD F6 PLUS is an ideal camera-top monitor for DSLR and mirrorless camera shooters. Because the F6 PLUS provides auxiliary power out; allowing shooters to power their cameras. With a battery adapter cable (Optional), the F6 PLUS extends camera run-time, while providing a more usable display.
Power Input
In addition to the power supply through the battery plates and 12V DC power input, it also supports 5V Type-C input, which can be powered by mobile phone charger or power bank. (At least 5V/2A)
Note: The 5V Type-C port is only used for power supply, not for data transmission, and cannot provide loop-out power.
Flexible Dual-purpose Battery Plate
Compatibility with Sony F970 and Canon LP-E6 of lithium batteries for one battery plate. Providing long-time working condition for cameraman in shooting applications.
Convenient Mounting – Tilt Arm
Every F6 PLUS monitor will ship with a cold shoe mounted Tilt Arm. Shooters will have a secure way to position their monitor while maintaining a low profile.
• Allows the F6 PLUS monitor to rotate 360 degrees for viewing convenience
• Secure and lightweight mounting via shoe mount or 1/4″-20 thread
• Includes a shoe mount of its own for accessories like a microphone, LED light, or wireless receiver, etc.
Flexible Install Both on Camera and Gimbal
To convenient the various angles monitoring
FEELWORLD F6 PLUS features standard 1/4″ mount points (top, bottom, right) for attaching it to cameras and rigs. Not only you can install it on a monitor through tilt arm, but also you can mount it on a handheld stabilizer or securely attach it to the top of your camera as the ultimate HD viewfinder! If you install it on the bottom of the device, you can also combine the image flip function to maintain the correct orientation of the screen!
